Adding a Study

There are 2 ways to add a study to a symbol within your chart.



1. From the edit chart dialog box

1. Click edit

2. Select the symbol you want to add a study to.  The Add Study button will no longer be grayed out.

3. Click Add Study button and select a study from the list.



2. Right click on the chart

1. Create a chart

2. Right click on the line within the chart you wish to add the study to.

3. The following box will pop up.

4. Hover your mouse over Add Study

5. Select a study from the list.



Editing a Study

Once a study has been applied to a chart their are 2 ways of editing it.

1. From the edit chart dialog box

1. Click edit

2. Select the study you want to edit.

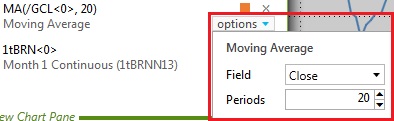

3. Click on the options drop down next to that study

4. Based on the study you have selected the appropriate parameters will appear below.
